customized optical glass bk7/fused silica/sapphire prism blank substrates

FOB Reference Price:Get Latest Price
$4.99 - $10.99 / Piece | 10 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 1000 1001 - 2000 >2000
Est. Time(days) 20 30 Negotiable
Customization:
Dimension (Min. Order: 10 Pieces)
Samples:
$4.99 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jilin, China
Brand Name:
YT
Model Number:
YTP200911
Material:
optical glass, BK7/Fused Silica/CaF2/sapphire
Surface Quality:
60/40, 60/40, 40/20
Dimension Tolerance:
+/-0.1mm
Angle Tolerance:
+/-30''
Flatness:
L/4,L/2,L/8,L/10, 1/2 lambda, 1/4lambda
Dimension:
1mm-380mm
Chamfer:
standard chamfers
Coating:
AR,BBAR,Ag,Al,Au,
Parallelism:
+/-3' , +/-30''
Type:
Prism blank
Package:
Carton Box
Name:
Anamorphic Prism
Supply Ability
Supply Ability:
200000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
STANDARD PACKAGE
Port
CHANGCHUN
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 1000 1001 - 2000 >2000
Est. Time(days) 20 30 To be negotiated
Video Description
Products Show
Product Description

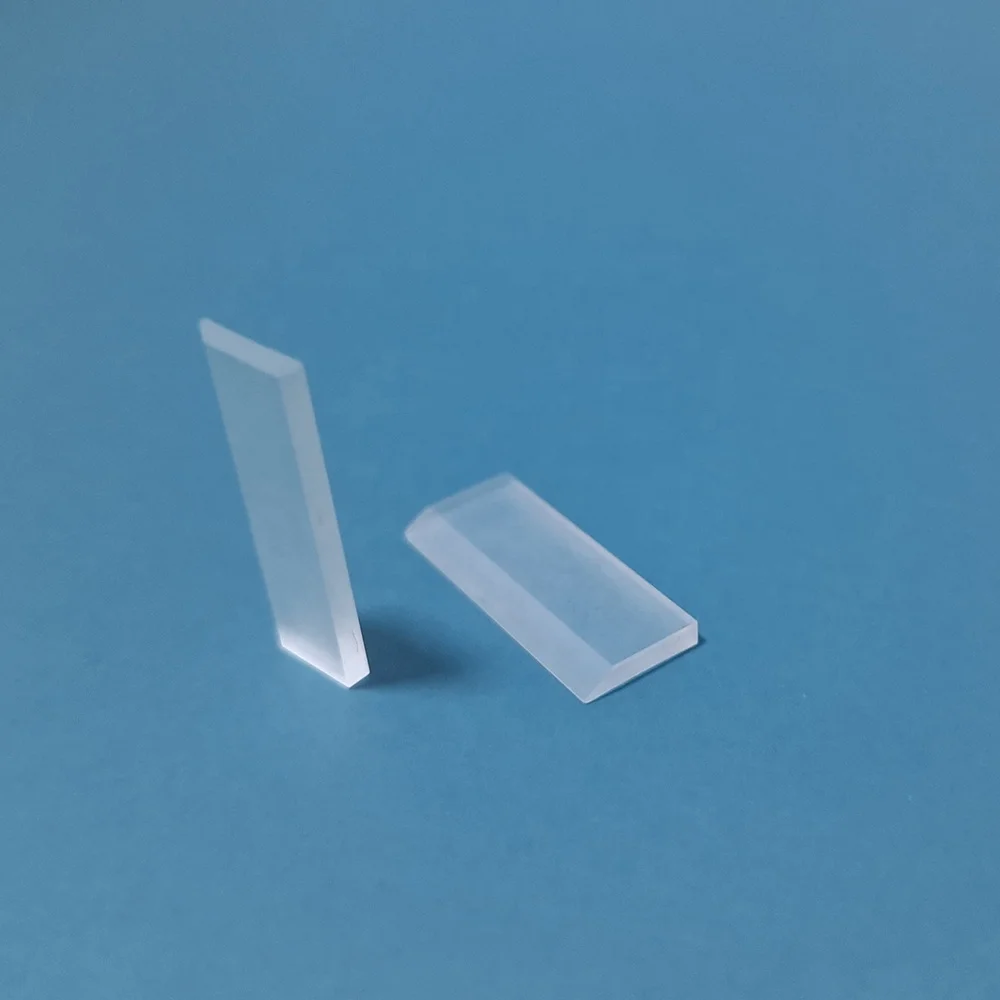

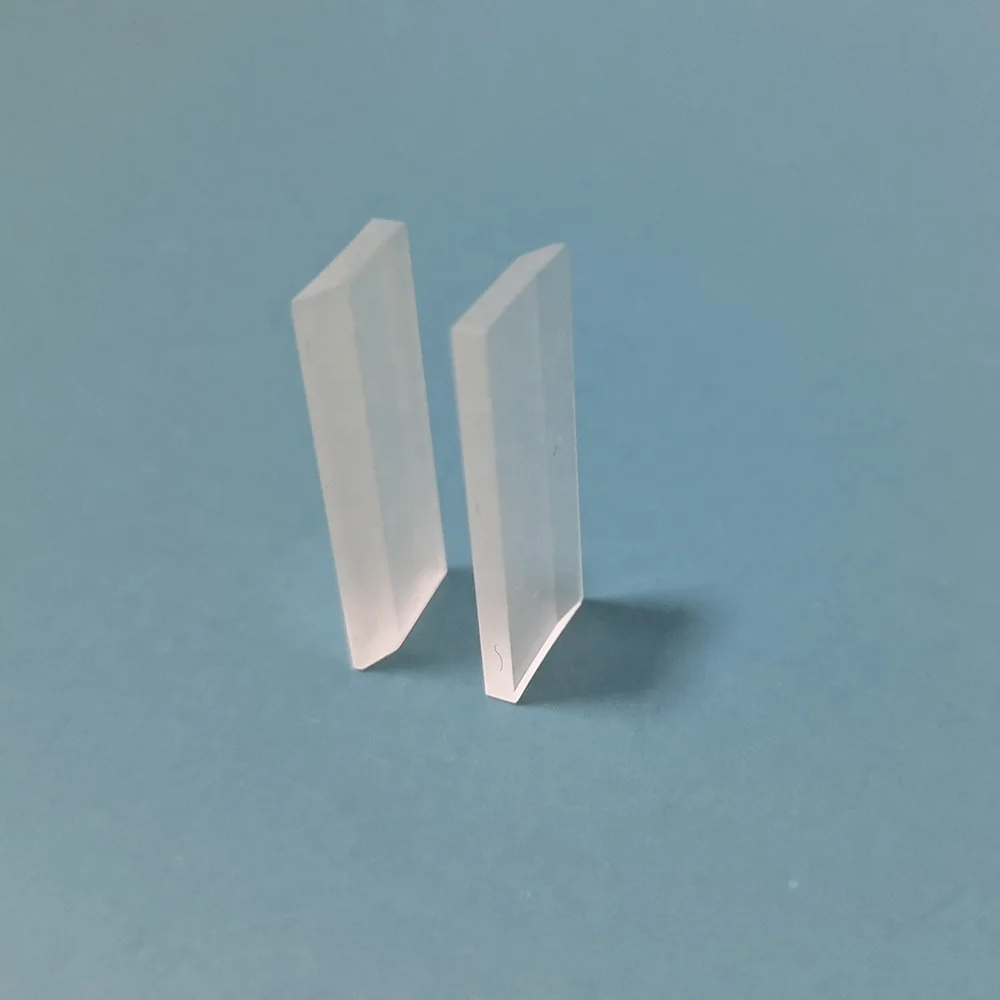

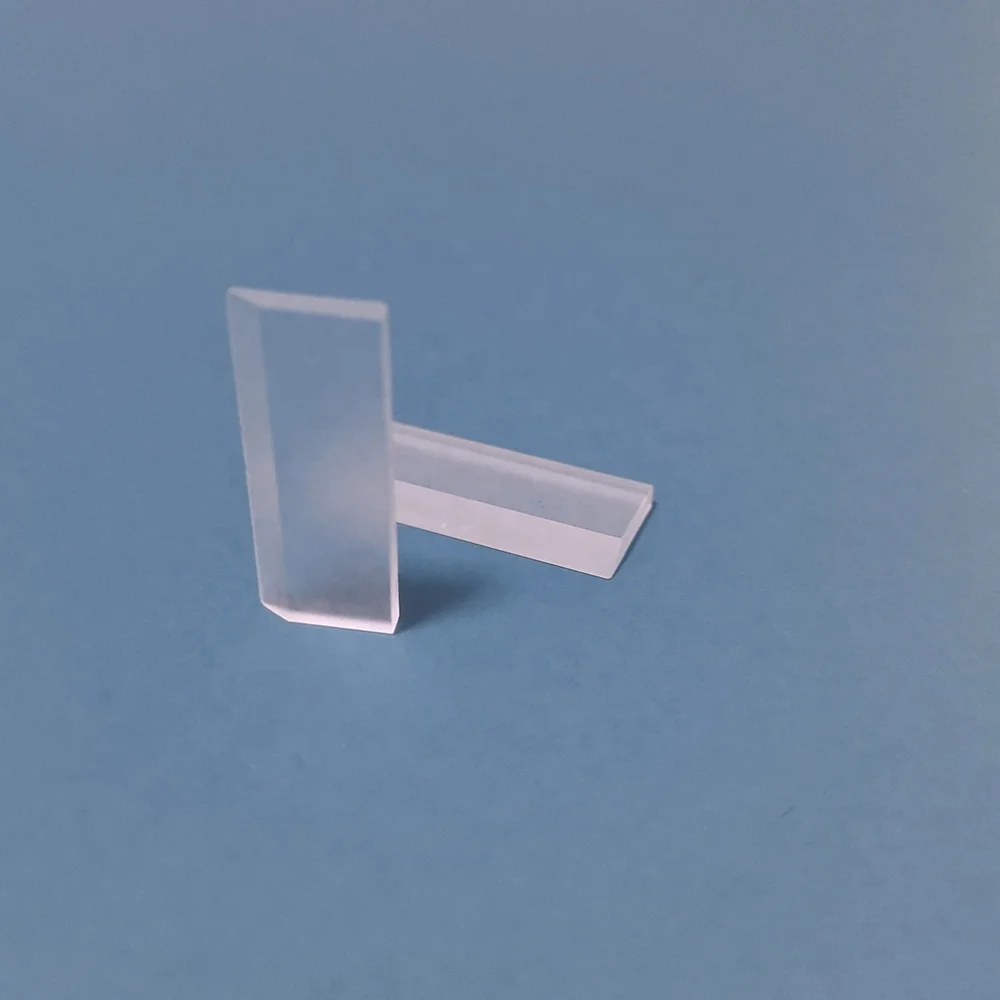

Anamorphic prism blank
Anamorphic prisms are used to change the dimension of a beam in one axis, the effect being analogous to that of a cylindrical
lens. These two prisms can expand or contract the beam in one direction without any changes in the other direction. By adjusting
the angles among the incident beam and two prisms, the shape of the beam can be changed. It is very easy to turn elliptical beam
into circular beam. If beam shaping is required, a system using a pair of anamorphic prisms has several significant benefits.

Anamorphic prism blank
Anamorphic Prism Pairs are used mainly to correct the asymmetric beam shape of a Laser Diode – from elliptical to near circular
shape. This is done by expanding (or contracting) the beam in one direction only while the other direction remains unchanged. The
aspect ratio of the elliptical beam varies according to the laser diode
flecting faces.

Material
N-BK7, Fused Silica, CaF2,Znse,sapphire
Dimension
1mm-400mm
Surface Figure
L/2~L/10
Surface Quality
60/40,40-20,20-10
Centration
<3arc min~ 30arc sec
Chamfer
standard chamfers
Coating
as customer's requirements
Coating
AR,BBAR,UV enhanced aluminum, protected aluminum, protected silver, or protected gold
Our Products
Our Company
Yutai Optics, we specialize in the design and volume manufacturing of high performance optical components such as lens,prisms, windows,filters,mirrors and more for use in optical instruments and laser systems, as well as for military, telecommunications,medical, environment monitoring industry,material is widely ranged from optical glass to IR and UV glass.
As a Fast-growing supplier in Optics, Yutai Optics offers excellent service and good quality items,our products have been appreciated by many European and American customers,of course we build a long-term cooperation. YuTai Optics has quickly established itself as a leader in optical components from its advanced technology and quality control.

Packing & Delivery

Packing Details  :Use Good and Strong Cartons to pack

Delivery Express:TNT, DHL, FedEx, UPS, EMS, SF...

Payment
Payment Terms: T/T, Western Union, Paypal, Alipay...
Our Advantage

Sells Team

Yutai Optics has a professional sells team with excellent service, we tracking from inquiry to delivery of items.We try our best to meet each customers'request.

Production Team

Yutai Optics has many experienced engineers and advanced machines, they are the important guarantee for the higher quality products.Our advanced production machines list:
Ring polishing machine, Single axis machine, Two axis machine, Four axis machine,Centering edging machine,Mechanical milling machine, Spectrograph, Grinding machine,nanotech .250upl, talysurfi 120.

Inspection Team

Advanced testing equipment and methods are important guarantee for the production of high- precision products.Our testing machine is ZYGO, Stereo interferometer, Horizontal interferometer. We provide testing report for each batch for your items.


FAQ

Q: What are your main products?

A: Optical lens,mirrors,windows,filters,prisms

Q: How long is your delivery time?

A: In general delivery time is about one month for custom produced optics.except stock ones or some special optics.

Q: Do you provide samples ? is it free or extra ?

A: We can provide free samples if we have stock optics as your request,while custom produced samples are not free.

Q:What is your MOQ ?

MOQ is 10pcs for most of the optics, while MOQ could be only one piece if you need a element in big dimention.

Q: What is your terms of payment ?

T/T,L/C,VISA,Paypal,Alipay or Negotiation.
