for surveying and laser ranging optical corner cube prism BK7 38 1 mm Retroreflectors

FOB Reference Price:Get Latest Price
$1.99 - $99.99 / Piece | 5 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 2 >2
Est. Time(days) 10 Negotiable
Customization:
dimension custom (Min. Order: 10 Pieces)
Samples:
$10.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
Yutai
Model Number:
gtb213
Material:
glass, fused silica BK7 sapphire
Surface Quality:
40/20, 60/40
Dimension Tolerance:
+/-0.05
Angle Tolerance:
<20 arcsec
Flatness:
L/5
Application:
optical
Parallelism:
2 arc seconds
Centering:
30 arc min
Irregularity:
L/4
Clear Aperture:
>92%
Diameter:
1-150mm
Length:
2.6/1.8mm
Shape:
ball
Supply Ability
Supply Ability:
200000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
STANDARD PACKAGE
INNER PACK
OUTER PACK
Port
CHANGCHUN
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 2 >2
Est. Time(days) 10 To be negotiated
Video Description

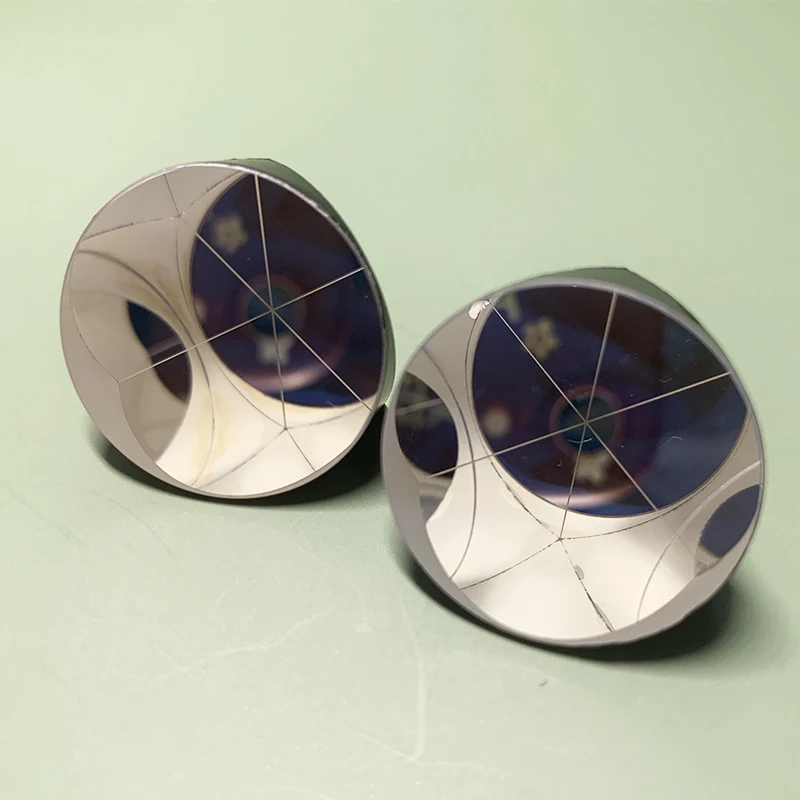

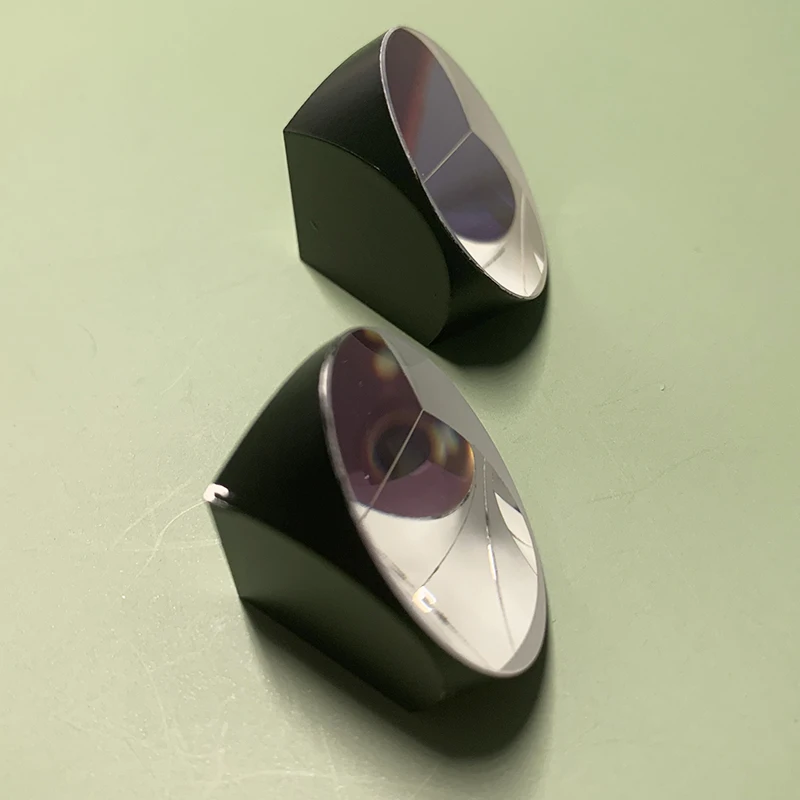

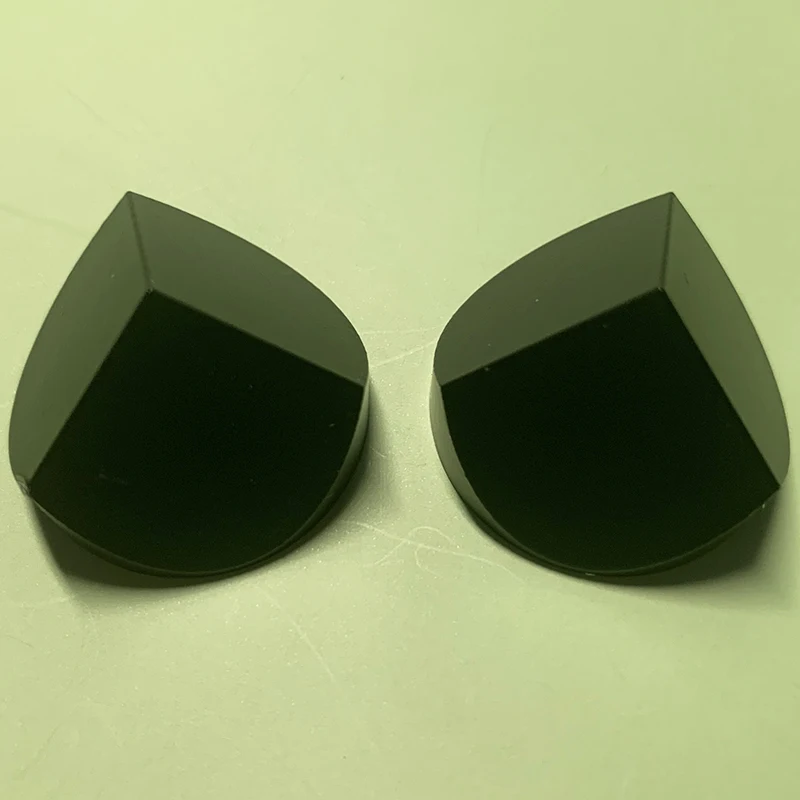

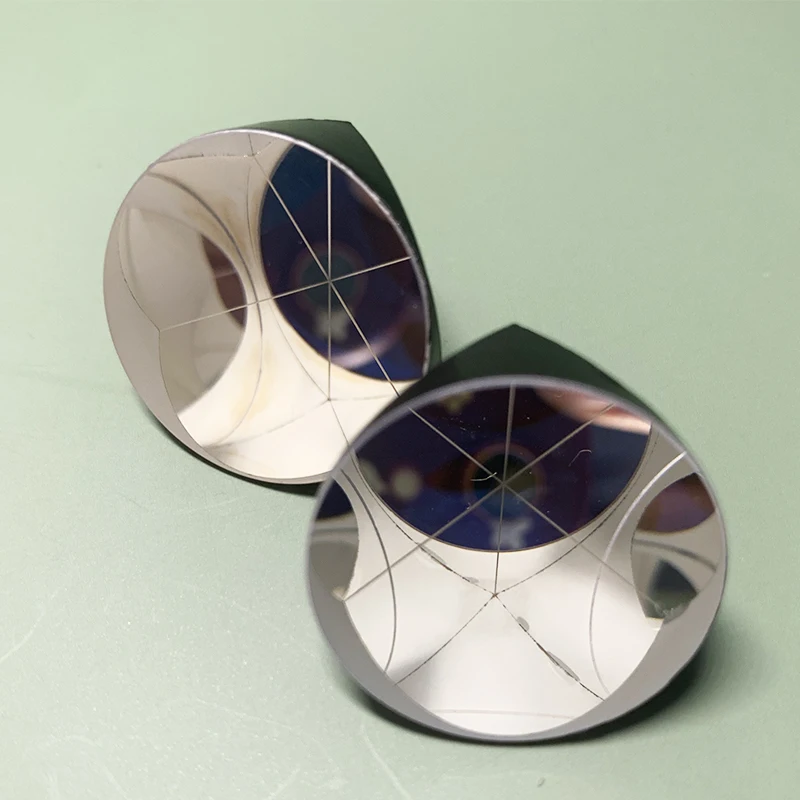

Products Show
Product Description

A corner reflector is a retroreflector consisting of three mutually perpendicular, intersecting flat surfaces, which reflects
waves directly towards the source, but translated. The three intersecting surfaces often have square shapes. Radar corner
reflectors made of metal are used to reflect radio waves from radar sets. Optical corner reflectors, called corner cubes or cube corners, made of three-sided glass prisms, are used in surveying and laser ranging.
Product
corner reflector
Material
optical glass(K9/fused silica/sapphire...)
Diameter
18/19/20/25mm or custom
Height
24.0mm
Flatness
L/4
Aperature
>90%
Wavelength
visible
Coating
upon customer request
S/D
40/20
Tolerance
+/-0.1mm
Customer Review
Our Products
Our Company
Yutai Optics, we specialize in the design and volume manufacturing of high performance optical components such as lens,prisms, windows,filters,mirrors and more for use in optical instruments and laser systems, as well as for military, telecommunications,medical, environment monitoring industry,material is widely ranged from optical glass to IR and UV glass.
As a Fast-growing supplier in Optics, Yutai Optics offers excellent service and good quality items,our products have been appreciated by many European and American customers,of course we build a long-term cooperation. YuTai Optics has quickly established itself as a leader in optical components from its advanced technology and quality control.
Packing & Delivery

Packing Details  :Use Good and Strong Cartons to pack

Our Advantage

Sells Team

Yutai Optics has a professional sells team with excellent service, we tracking from inquiry to delivery of items.We try our best to meet each customers'request.

Production Team

Yutai Optics has many experienced engineers and advanced machines, they are the important guarantee for the higher quality products.Our advanced production machines list:
Ring polishing machine, Single axis machine, Two axis machine, Four axis machine,Centering edging machine,Mechanical milling machine,Spectrograph, Grinding machine,nanotech.250upl,talysurfi120.

Inspection Team

Advanced testing equipment and methods are important guarantee for the production of high- precision products.Our testing machine is ZYGO, Stereo interferometer,Horizontal interferometer.We provide testing report for each batch for your items.

FAQ

Q: What are your main products?

A: Optical lens,mirrors,windows,filters,prisms

Q: How long is your delivery time?

A: In general delivery time is about one month for custom produced optics.except stock ones or some special optics.

Q: Do you provide samples ? is it free or extra ?

A: We can provide free samples if we have stock optics as your request,while custom produced samples are not free.

Q:What is your MOQ ?

MOQ is 10pcs for most of the optics, while MOQ could be only one piece if you need a element in big dimention.

Q: What is your terms of payment ?

T/T,L/C,VISA,Paypal,Alipay or Negotiation.
