CWL400nm 650nm 780nm Narrow band Interference Filter

FOB Reference Price:Get Latest Price
$1.00 - $13.00 / Piece | 1 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jilin, China
Brand Name:
YT
Model Number:
YTV742
Size:
Customed Size
Material:
Fused Silica
Use:
Optical Instruments
Substrate:
BK7 Fused Silica
Center Wavelength (nm):
400nm or customized
Bandwidth (nm):
26
Optical Density OD:
≥6.0
Full Width-Half Max (nm):
29 or customized
Diameter (mm):
1-200mm
Clear Aperture:
>=90%
Surface Quality:
60-40
Coating:
customized
Type:
Bandpass Filter
Supply Ability
Supply Ability:
200000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
STANDARD PACKAGE
Port
CHANGCHUN
Video Description

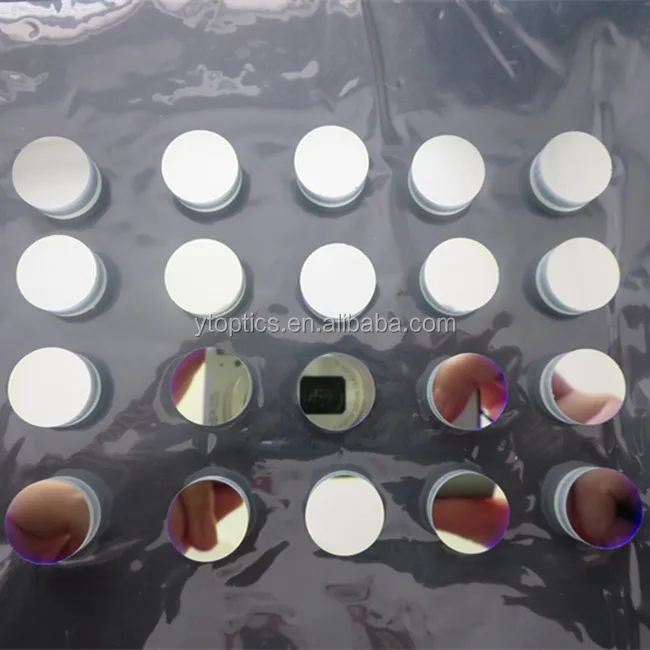

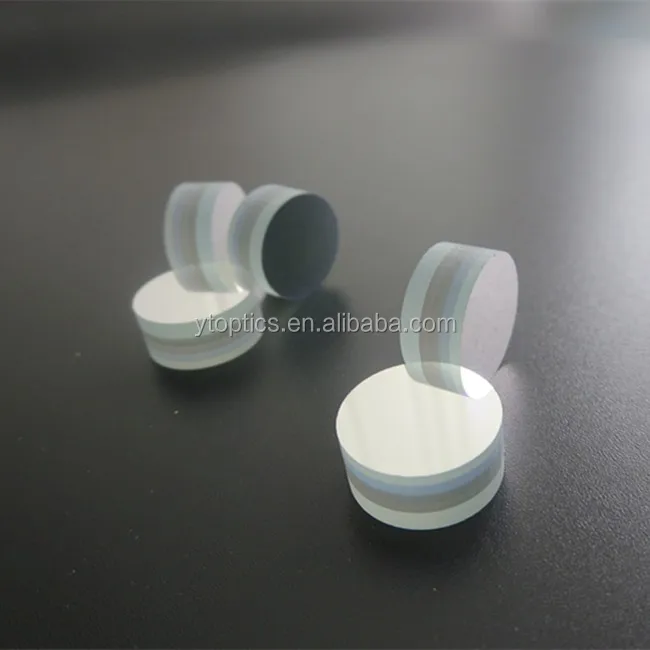

Products Show
Product Description

Ultra Narrow Bandpass Filters are ideal for use as laser line, laser cleanup, or laser excitation filters in demanding medical and laser applications. These hard coated filters are manufactured with state of the art plasma deposition processes, which ensure high resistance to laser damage and a high level of performance over a long period of time. Depending on the wavelength range and system requirements, these Ultra Narrow Bandpass Filters will provide up to 98% peak transmission, up to OD 10 blocking by design, center wavelength tolerances as tight a 0.05nm, FWHM bandwidths <1nm, and extremely steep edges with an ultra-flat passband profile. Typical applications include fluorescence microscopy, flow cytometry, and real time PCR or DNA sequencing.

Product Name
CWL400nm 650nm 780nm Narrow band Interference Filter
Material
BK7 Fused Silica
Center Wavelength (nm)
400nm or customized
Bandwidth (nm)
26 or customized
Surface Quality
60-40
Full Width-Half Max (nm)
29 or customized
Diameter (mm)
1-200mm
Coating
customized
Our Products
Our Company
Yutai Optics, we specialize in the design and volume manufacturing of high performance optical components such as lens,prisms, windows,filters,mirrors and more for use in optical instruments and laser systems, as well as for military, telecommunications,medical, environment monitoring industry,material is widely ranged from optical glass to IR and UV glass.
As a Fast-growing supplier in Optics, Yutai Optics offers excellent service and good quality items,our products have been appreciated by many European and American customers,of course we build a long-term cooperation. YuTai Optics has quickly established itself as a leader in optical components from its advanced technology and quality control.

Packing & Delivery

Packing Details  :Use Good and Strong Cartons to pack

Delivery Express:TNT, DHL, FedEx, UPS, EMS, SF...

Payment
Payment Terms: T/T, Western Union, Paypal, Alipay...
Our Advantage

Sells Team

Yutai Optics has a professional sells team with excellent service, we tracking from inquiry to delivery of items.We try our best to meet each customers'request.

Production Team

Yutai Optics has many experienced engineers and advanced machines, they are the important guarantee for the higher quality products.Our advanced production machines list:
Ring polishing machine, Single axis machine, Two axis machine, Four axis machine,Centering edging machine,Mechanical milling machine, Spectrograph, Grinding machine,nanotech .250upl, talysurfi 120.

Inspection Team

Advanced testing equipment and methods are important guarantee for the production of high- precision products.Our testing machine is ZYGO, Stereo interferometer, Horizontal interferometer. We provide testing report for each batch for your items.


FAQ

Q: What are your main products?

A: Optical lens,mirrors,windows,filters,prisms

Q: How long is your delivery time?

A: In general delivery time is about one month for custom produced optics.except stock ones or some special optics.

Q: Do you provide samples ? is it free or extra ?

A: We can provide free samples if we have stock optics as your request,while custom produced samples are not free.

Q:What is your MOQ ?

MOQ is 10pcs for most of the optics, while MOQ could be only one piece if you need a element in big dimention.

Q: What is your terms of payment ?

T/T,L/C,VISA,Paypal,Alipay or Negotiation.
