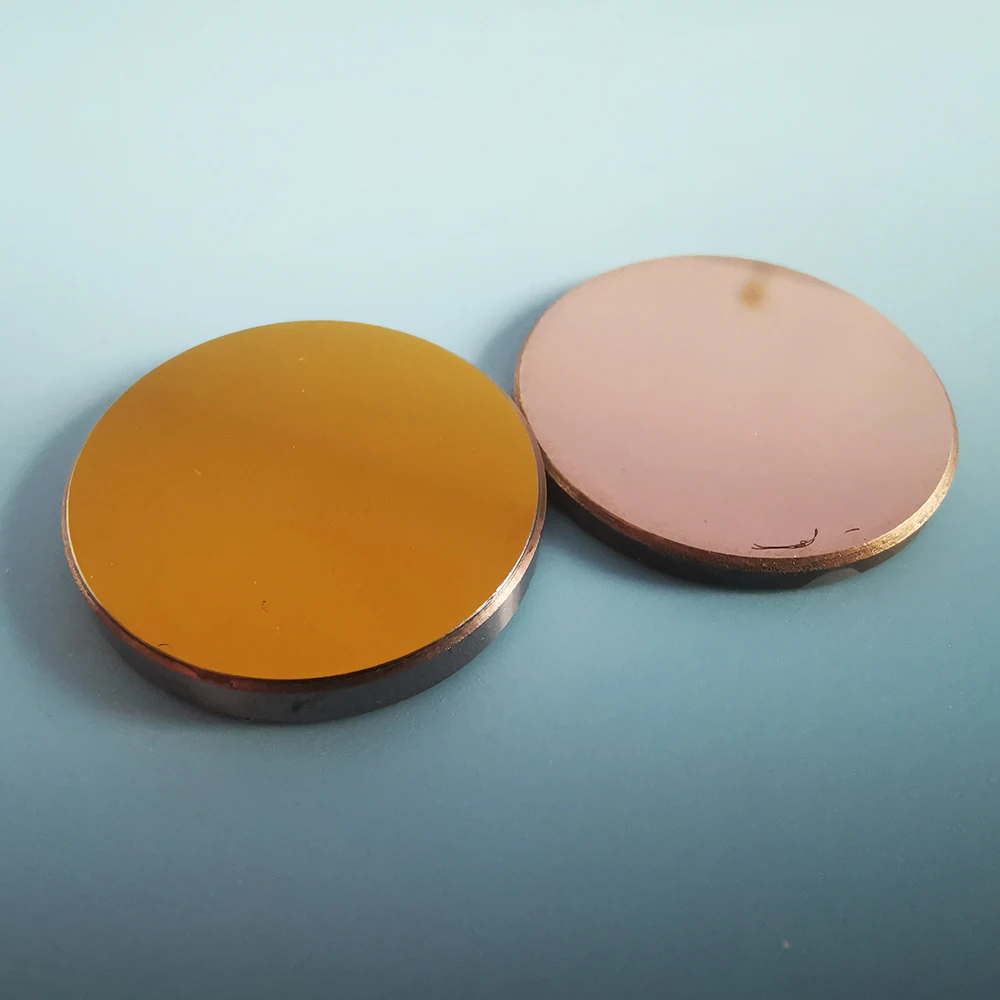

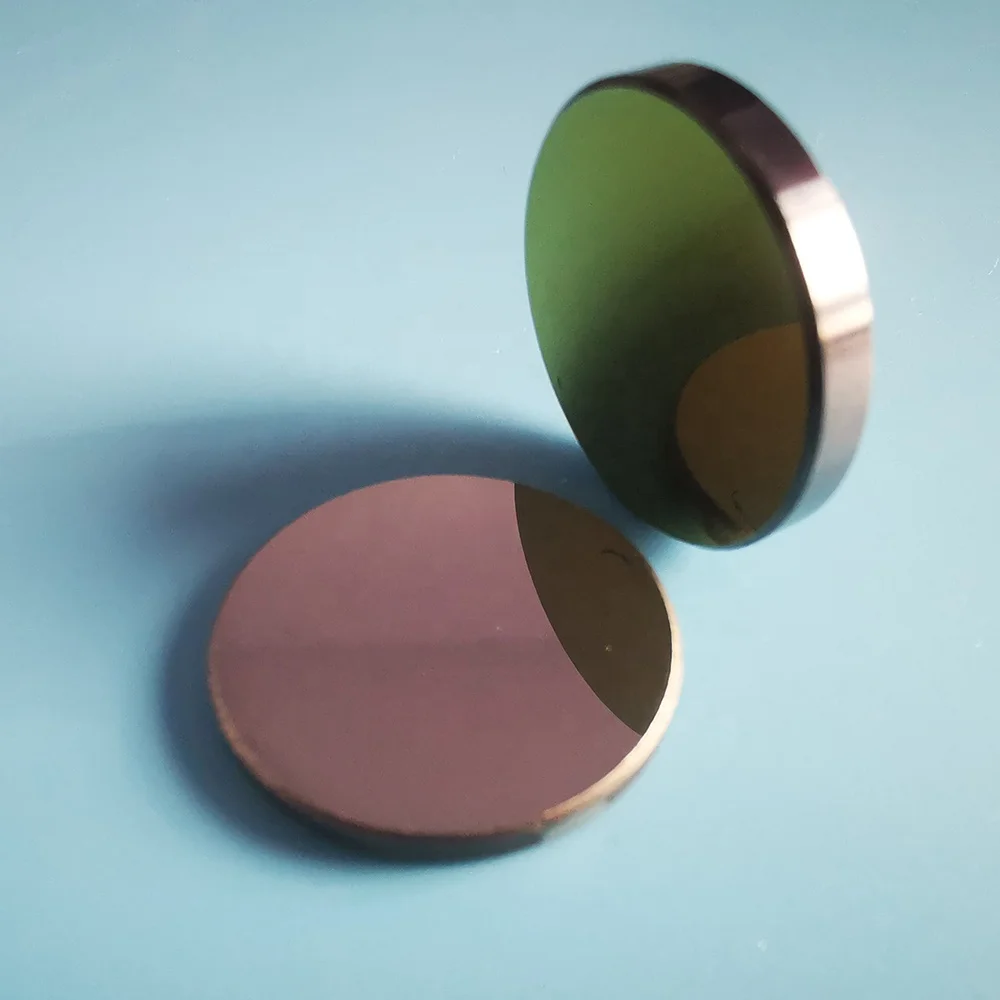

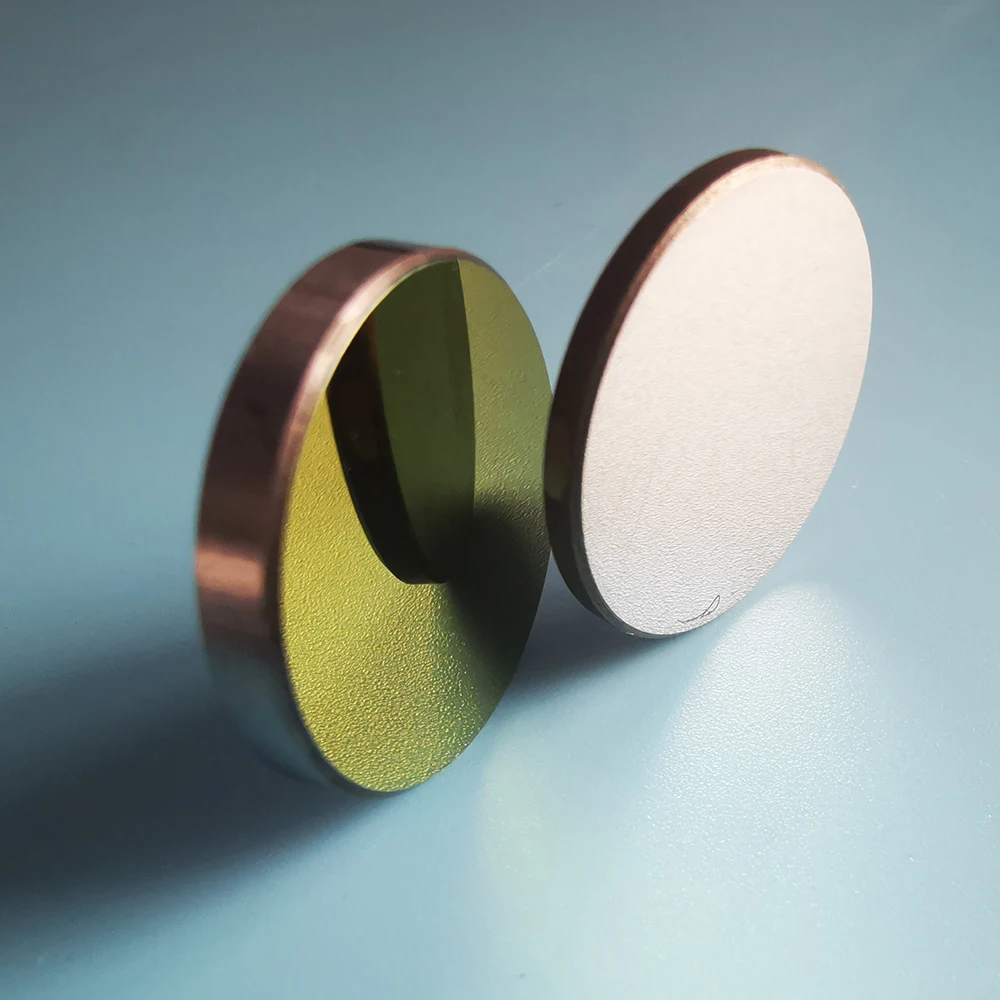

Optical Mirror with coating (Gold, Silver, Al, Cu)

FOB Reference Price:Get Latest Price
$1.00 - $13.00 / Piece | 1 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jilin, China
Brand Name:
YT
Model Number:
YTM043
Material:
optical Glass
Dimension:
as customer design
Flatness:
L/4,L/2
Surface Quality:
60/40
AOI:
0deg or 45deg
Chamfer:
0.1~0.3mm x 45degree
Coating:
gold, silver,Al,Cu
Dimension Tolerance:
+/-0.1mm, +/-0.01mm
Product name:
mirror
Type:
square
Supply Ability
Supply Ability:
200000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
STANDARD PACKAGE
Port
CHANGCHUN
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 30 To be negotiated
Video Description
Products Show
Product Description

Features:Changchun yutai optics Co.Ltd provide a range of laser, flat, metal substrate, focusing, or specialty Optical Mirrors . In a multitude of reflective coating options, including Protected Aluminum, Enhanced Aluminum, Protected Silver, Protected Gold, or Dielectric. Choosing the proper reflective coating option ensures high reflectivity of the needed wavelength or wavelength range.Reflection


Protected Aluminum Ravg>90% 0.4-0.7μm
Enhanced Aluminum Ravg>92% 0.45-0.65μm
Protected Silver Ravg>95% 0.5-0.8μm, Ravg>95% 2-10μm
Protected Gold Ravg>95% 0.8-2μm, Ravg>84% 0.7-0.8μm
Dielectric Mirror Coatings Ravg >99.99% >400nm
Product Name
Custom Optical Front Surface Mirror and First Surface Mirror with coating (Gold, Silver, Al, Cu)
Material
optical glass
Dimension
as customer's design
Surface Figure
L/4,L/2
Surface Quality
60/40,40-20
AOI
0 deg/45 deg/customer requirements
Chamfer
standard chamfers
Dimension Tolerance
+/-0.1mm, +/-0.01mm
Coating
Gold, Silver, Al, Cu
LOur Products
Our Company
Yutai Optics, we specialize in the design and volume manufacturing of high performance optical components such as lens,prisms, windows,filters,mirrors and more for use in optical instruments and laser systems, as well as for military, telecommunications,medical, environment monitoring industry,material is widely ranged from optical glass to IR and UV glass.
As a Fast-growing supplier in Optics, Yutai Optics offers excellent service and good quality items,our products have been appreciated by many European and American customers,of course we build a long-term cooperation. YuTai Optics has quickly established itself as a leader in optical components from its advanced technology and quality control.

Packing & Delivery

Packing Details  :Use Good and Strong Cartons to pack

Delivery Express:TNT, DHL, FedEx, UPS, EMS, SF...

Payment
Payment Terms: T/T, Western Union, Paypal, Alipay...
Our Advantage

Sells Team

Yutai Optics has a professional sells team with excellent service, we tracking from inquiry to delivery of items.We try our best to meet each customers'request.

Production Team

Yutai Optics has many experienced engineers and advanced machines, they are the important guarantee for the higher quality products.Our advanced production machines list:
Ring polishing machine, Single axis machine, Two axis machine, Four axis machine,Centering edging machine,Mechanical milling machine, Spectrograph, Grinding machine,nanotech .250upl, talysurfi 120.

Inspection Team

Advanced testing equipment and methods are important guarantee for the production of high- precision products.Our testing machine is ZYGO, Stereo interferometer, Horizontal interferometer. We provide testing report for each batch for your items.


FAQ

Q: What are your main products?

A: Optical lens,mirrors,windows,filters,prisms

Q: How long is your delivery time?

A: In general delivery time is about one month for custom produced optics.except stock ones or some special optics.

Q: Do you provide samples ? is it free or extra ?

A: We can provide free samples if we have stock optics as your request,while custom produced samples are not free.

Q:What is your MOQ ?

MOQ is 10pcs for most of the optics, while MOQ could be only one piece if you need a element in big dimention.

Q: What is your terms of payment ?

T/T,L/C,VISA,Paypal,Alipay or Negotiation.
