Customized optical aspherical lens 20d

FOB Reference Price:Get Latest Price
$1.00 - $13.00 / Piece | 1 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jilin, China
Brand Name:
YT
Model Number:
YTV2476
Material:
Glass, optical lens
Usage:
Optical
Structure:
Plano-convex
Shape:
Aspheric
Parallelism:
5 arc seconds
Size:
25.4 x 6.35 mm
Center Thickness:
6.0 mm
Effective Focal Length:
-6.4 mm
Thickness:
3.0 mm
Surface Quality:
60-40 scratch-dig
Centration:
<3 arc min
Coating:
customized
Clear Aperture:
Central 90% of diameter
Supply Ability
Supply Ability:
200000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
STANDARD PACKAGE
Port
CHANGCHUN
Video Description

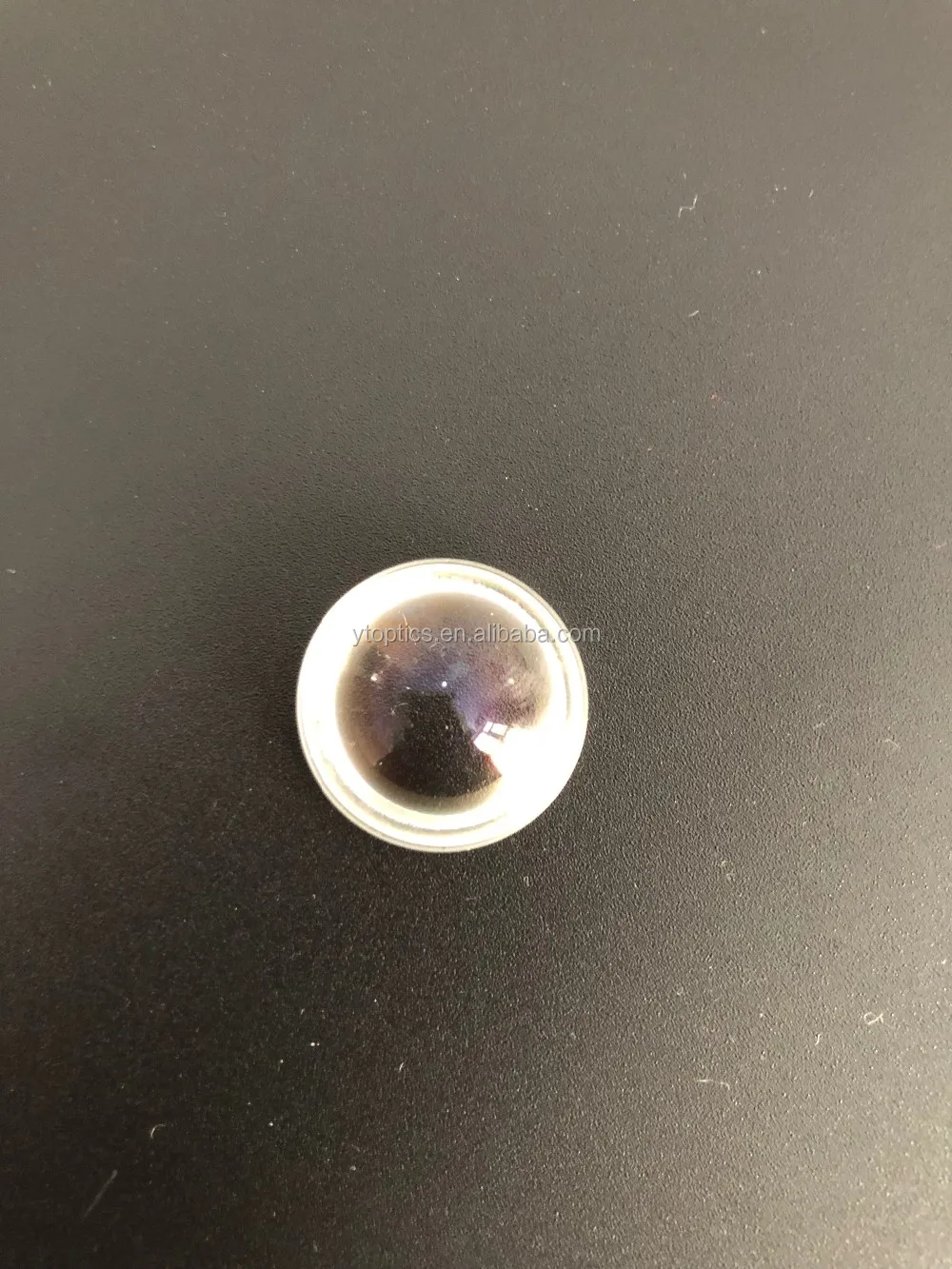

Products Show
Product Description

An aspheric lens or asphere is a lens whose surface profiles are not portions of a sphere or cylinder. In photography, a lens assembly that includes an aspheric element is often called an aspherical lens. The asphere's more complex surface profile can reduce or eliminate spherical aberration and also reduce other optical aberrations such as astigmatism, compared to a simple lens. A single aspheric lens can often replace a much more complex multi-lens system.

Product Name
Customized optical aspherical lens 20d
Centration
<3 arc min
Thickness
6.0 mm
Diameter
12.5 mm
Back Focal Length
-10.96 mm
Clear Aperture
≥central 80% of dimensions
Surface Flatness
L/2
Edge Thickness Tolerance
±0.3 mm
Edge Thickness
7.36 mm
Surface Quality
60-40 scratch-dig
Material
BK7/UV fused sillicon
Coating
uncoated
Our Products
Our Company
Yutai Optics, we specialize in the design and volume manufacturing of high performance optical components such as lens,prisms, windows,filters,mirrors and more for use in optical instruments and laser systems, as well as for military, telecommunications,medical, environment monitoring industry,material is widely ranged from optical glass to IR and UV glass.
As a Fast-growing supplier in Optics, Yutai Optics offers excellent service and good quality items,our products have been appreciated by many European and American customers,of course we build a long-term cooperation. YuTai Optics has quickly established itself as a leader in optical components from its advanced technology and quality control.
Packing & Delivery

Packing Details  :Use Good and Strong Cartons to pack

Our Advantage

Sells Team

Yutai Optics has a professional sells team with excellent service, we tracking from inquiry to delivery of items.We try our best to meet each customers'request.

Production Team

Yutai Optics has many experienced engineers and advanced machines, they are the important guarantee for the higher quality products.Our advanced production machines list:
Ring polishing machine, Single axis machine, Two axis machine, Four axis machine,Centering edging machine,Mechanical milling machine,Spectrograph, Grinding machine,nanotech.250upl,talysurfi120.

Inspection Team

Advanced testing equipment and methods are important guarantee for the production of high- precision products.Our testing machine is ZYGO, Stereo interferometer,Horizontal interferometer.We provide testing report for each batch for your items.

FAQ

Q: What are your main products?

A: Optical lens,mirrors,windows,filters,prisms

Q: How long is your delivery time?

A: In general delivery time is about one month for custom produced optics.except stock ones or some special optics.

Q: Do you provide samples ? is it free or extra ?

A: We can provide free samples if we have stock optics as your request,while custom produced samples are not free.

Q:What is your MOQ ?

MOQ is 10pcs for most of the optics, while MOQ could be only one piece if you need a element in big dimention.

Q: What is your terms of payment ?

T/T,L/C,VISA,Paypal,Alipay or Negotiation.
