Cylindrical Lens H-K9L Fused Silica Plano Convex with Small Size or Large

FOB Reference Price:Get Latest Price
$2.00 - $15.00 / Piece | 1 Piece/Pieces (Min. Order)
Material:
Other
Lead Time:
Quantity(Pieces) 1 - 5000 >5000
Est. Time(days) 30 Negotiable
Customization:
Other size (Min. Order: 10 Pieces)
Report Suspicious Activity
Overview
Quick Details
Model Number:
#200311
Usage:
Optical
Structure:
Plano-convex
Shape:
Cylindrical
Product Name:
Cylindrical Lens H-K9L Fused Silica Plano Convex
Material:
H-K9L
Thickness:
2-100mm
Tolerance:
+/- 0.1mm
Clear Aperture:
>95%
Coating:
uncoating or as request
Color:
Transparent Clear
Application:
linear detector, barcode scanning
Chamfer:
0.2*45°
Radius:
65.2
Packaging & Delivery
Packaging Details
Stardand Package
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 5000 >5000
Est. Time(days) 30 To be negotiated
Products Show

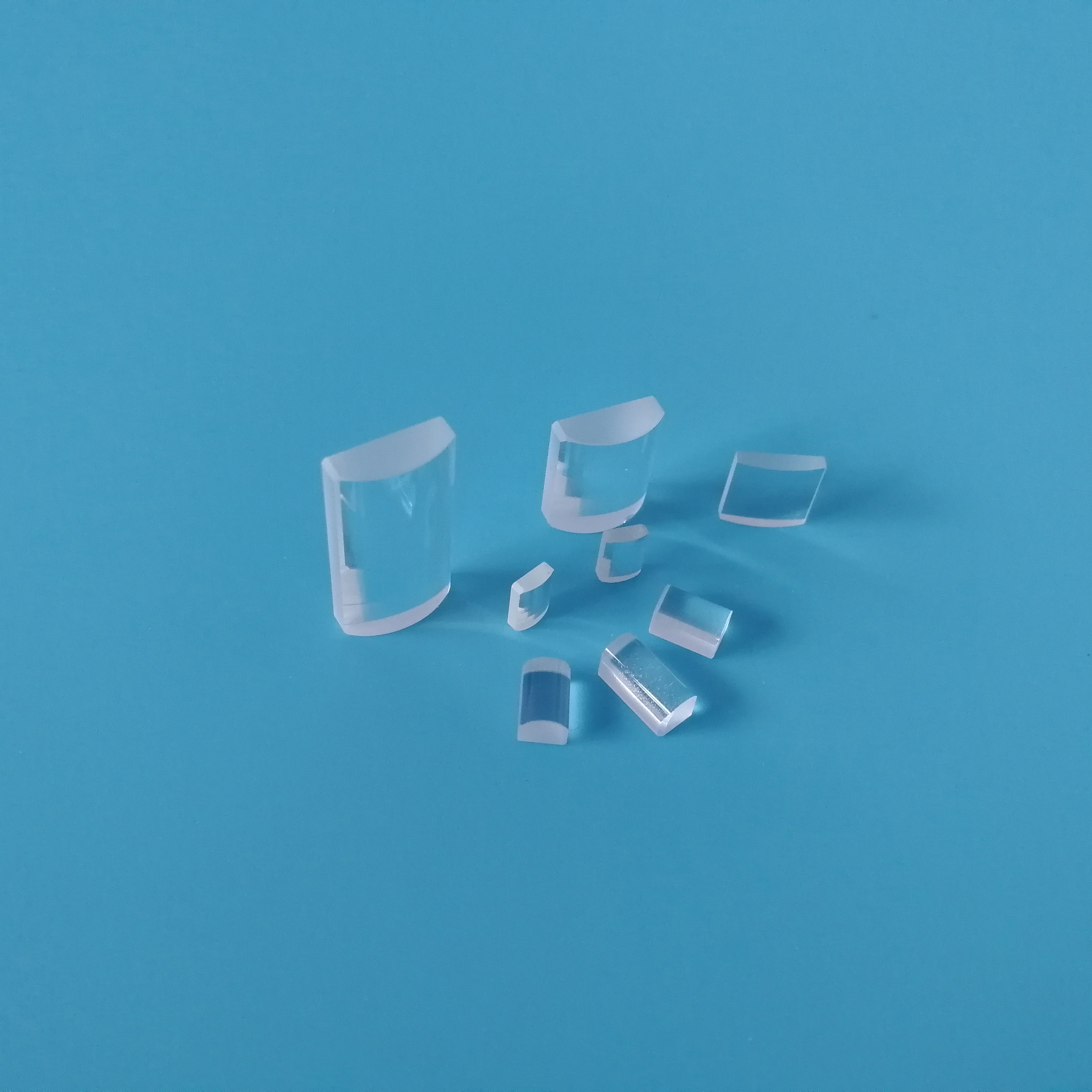

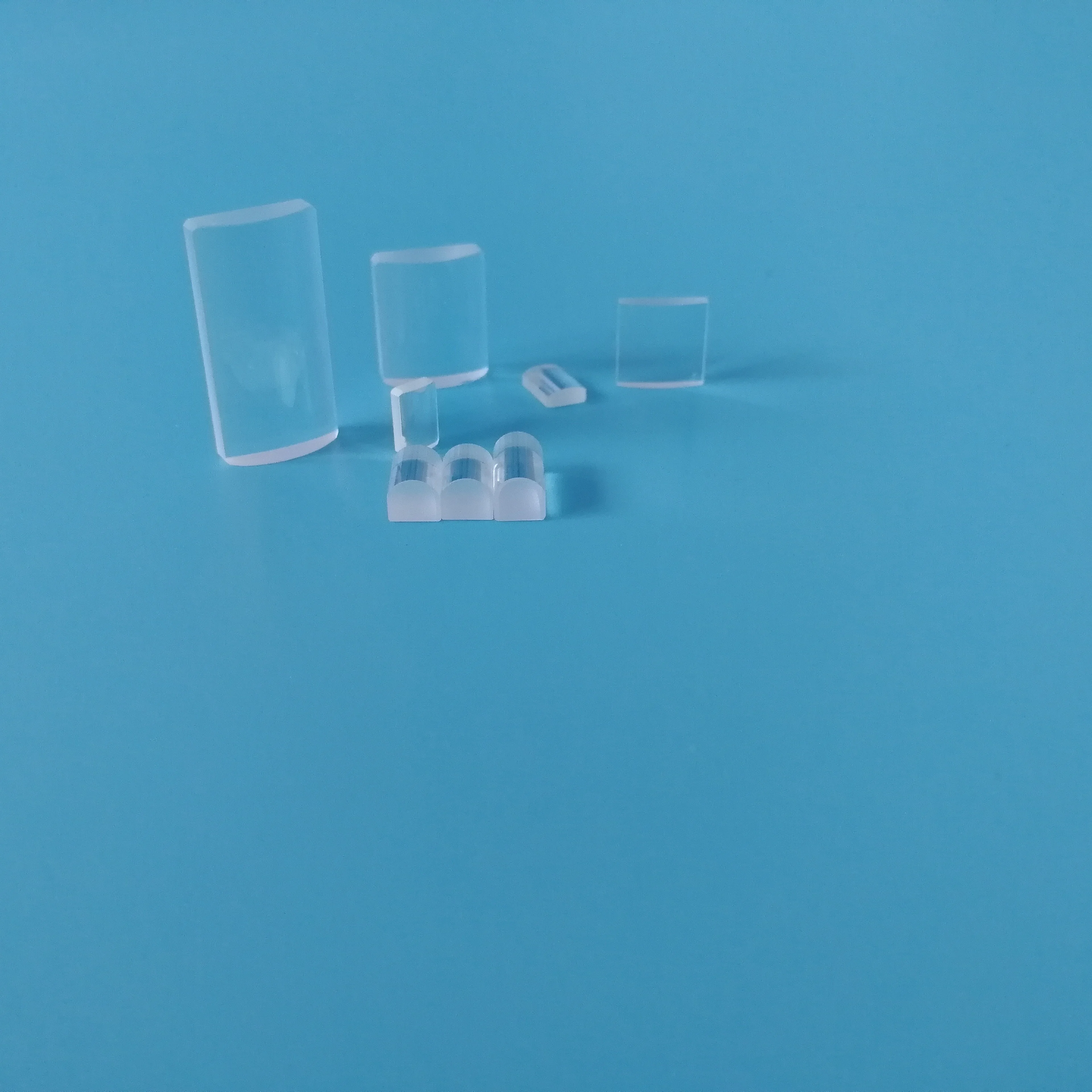

 Cylindrical lens
Cylindrical lens are mainly used for design requirements that change the size of the image. For example, a spot is converted into
a line spot or the height of the image is changed without changing the desired width. We can do double sides polish or three sides polish, for more information welcome to your inquiry.
Product Name
Cylindrical Lens H-K9L Fused Silica Plano Convex with Small Size or Large
Material
H-K9L, ZnSe, Germanium, Silicon, and other infrared materials.
Radious
as request
Thickness
1mm 2mm
Tolerance
+-0.1mm
Polish
Double surface polished
Coating
uncoated or as request
Chamfer
0.2mm or as request
Surface Quality
40-20
Surface Flatness
1 fringe
Other Laser Products
Our Products

YuTai opitcs can produce the optical lens, prism,window,filter,mirror and other optical components.

If you want to know more information for the products, please check the following...

Our Company
Yutai Optics, we specialize in the design and volume manufacturing of high performance optical components such as lens,prisms, windows,filters,mirrors and more for use in optical instruments and laser systems, as well as for military, telecommunications,medical, environment monitoring industry,material is widely ranged from optical glass to IR and UV glass.
As a Fast-growing supplier in Optics, Yutai Optics offers excellent service and good quality items,our products have been appreciated by many European and American customers,of course we build a long-term cooperation. YuTai Optics has quickly established itself as a leader in optical components from its advanced technology and quality control.

Packing & Delivery

Packing Details  :Use Good and Strong Cartons to pack

Our Advantage

Sells Team

Yutai Optics has a professional sells team with excellent service, we tracking from inquiry to delivery of items.We try our best to meet each customers'request.

Production Team

Yutai Optics has many experienced engineers and advanced machines, they are the important guarantee for the higher quality products.Our advanced production machines list:
Ring polishing machine, Single axis machine, Two axis machine, Four axis machine,Centering edging machine,Mechanical milling machine,Spectrograph, Grinding machine,nanotech.250upl,talysurfi120.

Inspection Team

Advanced testing equipment and methods are important guarantee for the production of high- precision products.Our testing machine is ZYGO, Stereo interferometer,Horizontal interferometer.We provide testing report for each batch for your items.

FAQ

Q: What are your main products?

A: Optical lens,mirrors,windows,filters,prisms

Q: How long is your delivery time?

A: In general delivery time is about one month for custom produced optics.except stock ones or some special optics.

Q: Do you provide samples ? is it free or extra ?

A: We can provide free samples if we have stock optics as your request,while custom produced samples are not free.

Q:What is your MOQ ?

MOQ is 10pcs for most of the optics, while MOQ could be only one piece if you need a element in big dimention.

Q: What is your terms of payment ?

T/T,L/C,VISA,Paypal,Alipay or Negotiation.
